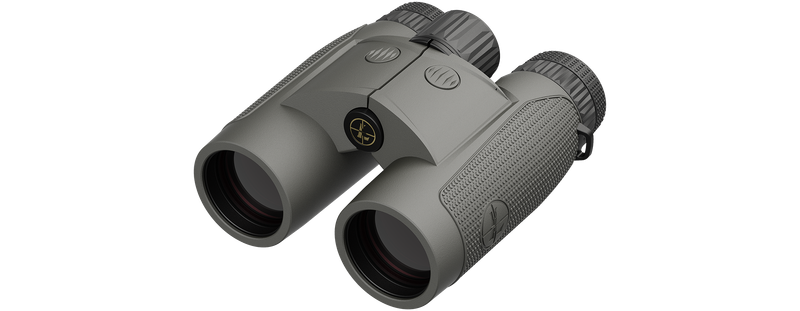

When speed is paramount, there’s no substitute for a range-finding binocular. The BX-4 Range HD TBR®/W 10x42mm fuses our DNA® engine and ballistics software with the optical performance diehard hunters and shooters demand. Now you can spot and range targets without wasting valuable seconds switching between gear. Its high-contrast red OLED display delivers visible readouts in any light, and its edge-to-edge clarity makes glassing sessions easy on the eyes. The next time you’re packing for a match or hunt, cut the excess. Take the BX-4 Range HD TBR/W.
This time-saving combo of tech and glass is built around our Elite Optical System. It delivers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity you can count on in the backcountry. Compare it to other range-finding binoculars in its class, and you’ll see a difference, especially in low light.
But that’s just half of what this optic is all about. Its 10x magnification provides a large field of view for glassing in tight areas while still being powerful enough to make positive IDs from a distance. And when you finally spot your target, one press of the power button will tell you exactly how far to send your rounds. Backed by our Lifetime Optics Guarantee and our Two-Year Electronics Guarantee, the BX-4 Range HD is built for years of performance.
Tripod Compatible (1/4-20) | Yes |
---|---|
Rifle Angle Compensation | TBR/W |
Archery Angle Compensation | Bow Mode |
Battery Type | CR2 |
True Ballistic Range (TBR) | No |
Horizontal Distance (Trig) | No |
Archer's Advantage | No |
Display Type | Red OLED Display |
Flightpath | No |
Guard-ion Lens Coating | Yes |
Last Target | No |
Trophy Scale | No |
Length (in) | 5.9 |
Weight (oz) | 39 |
Magnification | 10 |
Objective Lens Diameter (mm) | 42 |
Linear FOV (ft@1000 yd) | 334 |
Angular FOV (Degrees) | 6.2 |
Eye Relief (mm) | 17 |
Min Diopter (dpt) | -3.5 |
Max Diopter (dpt) | 3.5 |
Close Focus Distance (ft) | 13 |
Interpupillary Distance Max (mm) | 76 |
Interpupillary Distance Min (mm) | 56 |
Light Transmission Left Channel (%) | 81 |
Light Transmission Right Channel (%) | 80 |
Accuracy to 125 (yd) | 1 |
Accuracy to 1000 (yd) | 1 |
Accuracy above 1000 (yd) % | .2 |
Battery Life (Actuations) | 3000 |
Max Range - Deer (yd) | 1100 |
Max Range - Trees (yd) | 1600 |
Max Range - Reflective (yd) | 2600 |
Min Range (yd) | 12 |
Laser Classification | Class 1M |
